设备产能 Equipment capacity |
12000-16000支/小时 12000-16000 pcs/h |
|
整机功率 Overall power |
20kw 380v 50HZ |
|

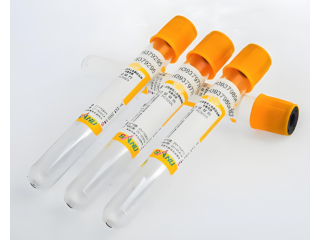

试管规格 Test tube specification |
Ø13管（13*75 13*100通用）Ø16管（设备结构发生变化） Ø13 tube (universal for 13*75 13*100) Ø16tube (when equipment structure varies) |
|
盖帽合格率 Qualification rate of capping |
≥99% |
|
加药精度 Dosing accuracy |
±1ul |
|
抽真空压盖帽合格率 Qualification rate of vacuum pressure capping |
≥99% |
|
耗气量 Gas consumption |
洁静压缩空气压力0.62-0.8Mpa Pressure of clean compressed air: 0.62-0.8Mpa |
|
整机外形尺寸 Overall boundary dimension |
8000mm*2500mm*2300mm |
|
整机重量 Overall weight |
约3000kg Approx. 3000kg |
